| Volt | 51.2 V |
| Ah | 100 |
| KWh | 5.12 |
| Charge Max V | 58.4 |
| Charge Max A | 50 |
| Discharge Min V | 2.7V/cella |
| Discharge Max A | 100 |
| Discharge Max A for 15″ | 200 |
| Discharge Max A for 3″ | 400 |
| Short-circuito current | >1000A |
| Length | 305 mm |
| Width | 344 mm |
| Height | 280 mm |
| Weight | 48 Kg |
| CAN BUS | Si |
| Certification UN 38.3 | Si |
| Pallet Quantity | 3 |
Zenith ZLI048060.A
- Electric Vehicles
- Golf cars
- Vehicles for Disables
- Cleaning Machines
- Transpallet
- Electric Boats
- RV
- Electric tools
- Renewable Energy
Lithium LiFePO4 Battery Packs
MAINTENANCE FREE: maintenance is not required.
SUPERIOR LIFETIME: the number of charge-discharge cycles is considerably higher than lead-acid batteries, so “cost per cycles” is lower.
LIGHT: they are up to 70% lighter than lead-acid batteries. Only a minimum amount of the whole battery energy is employed to move the battery itself so the vehicle autonomy is greater .
FAST CHARGE: they can be fully charged in 1hr (always use the proper battery charger). Vehicles, where they will be installed, will increase their productivity/autonomy.
S.o.C. display
n° 4 female threaded inserts, M6, per side
ON/OFF
Carring handles
Safety valve
Display and CAN BUS connectors

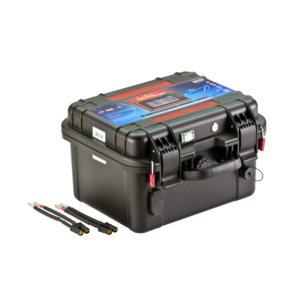

Images relating to the ZLI range, for specific images of the battery see the data sheet.
- Always ask the UNION BATTERY SERVICE authorization if you want to use them in series or parallel
