| Input Phase | 1 |
| Input V | 185/265 |
| Input Hz | 50/60 |
| Output V | 36 |
| Output A | 25 |
| Outtput Cycle | IWoU/IUoU |
| Rechargeable batteries – Lead-acid – Ah/C5 min | 250 |
| Rechargeable batteries – Lead-acid – Ah/C5 max | 300 |
| Rechargeable batteries – Sealed – Ah/C5 min | 210 |
| Rechargeable batteries – Sealed – Ah/C5 max | 250 |
| Kw | 1.40 |
| Mains voltage [A] – 230V | 9.3 |
| Length | 385 mm |
| Width | 200 mm |
| Height | 147 mm |
| Weight | 18.4 |

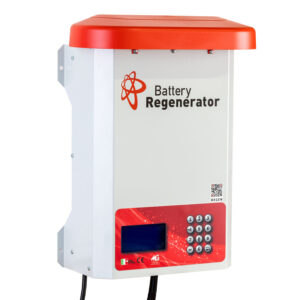

MGX3625
Single-phase automatic traditional charger
Stabilized: optimal charge even in presence of wide fluctuations in the mains voltage (min. 185V – max. 265V).
Traditional: these devices are of a traditional type (not high frequency).
Easy: the charge cycle takes place automatically, by simply connection the battery. The microprocessor checks the level of batteries discharge and the charge times.
Data memory: the main information related to charge cycles is stored in the battery charger memory. Then, the user’s behavior during charge/discharge phases can be easily reconstructed and warranty costs are dramatically reduced.
Flexible: with the MP-TOP II programmer it is possible to set the battery charrger for the charge of both lead-acid and sealed batteries (GEL, AGM).
Reliable: 2 years warranty.
- The nominal output current is CONSTANT CURRENT.
- The manufacturer guarantees the charge of recommended capacities, within 10-13 hours, with 80% of batteries discharge.
- Lower discharges involve lower charging time.
- The programming of these devices allows them to be adapted for the charge of any battery brand.
- All devices are endowed with SHUKO power cable.
- All devices are supplied with output cables, but WITHOUT the connector to the battery.
- The battery connectors are supplied on request.
